DEX

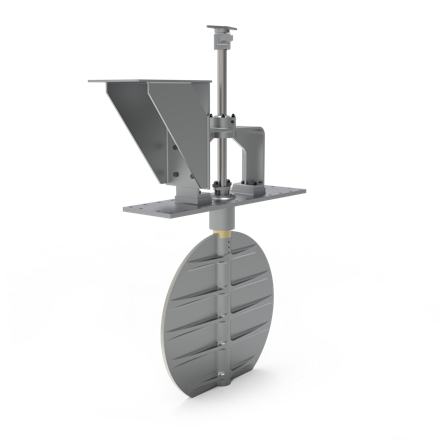

CONTROL DAMPERS WITH CENTRICALLY
MOUNTED DAMPER DISC
Suspended control dampers with a centrically mounted damper disc, suitable for metallurgical plant engineering, coking plants, etc., and for pipelines carrying contaminated fluids.
Technical Information
- DN 300 – DN 1200
- Crescent plates for reduced control cross-section available as special design
- Operating temperature from -10°C to 450°C
- Shaft seal according to TA-Luft available
CONTROL DAMPERS WITH CENTRICALLY
DESIGN FEATURES
- The suspended throttle damper is suspended in an existing pipeline flange provided on site.
- Installation is vertical in the horizontal pipeline.
- The bearing flange and bearing bracket of the damper are manufactured as a cast construction.
- The damper disc is designed for optimal flow and cut in segments to prevent deposits or buildup of contaminated media on the pipe bottom.
- The shaft is double-bearing mounted.
- The lower plain bearing is located outside the media flow and can be relubricated together with the packing.
- The external upper roller bearing is maintenance-free.
APPLICATIONS
- Metallurgy
- Coking Plants
Designs
High-pressure version
High-temperature version
Cryogenic version KXT
Heating jacket KXL – HJ
Solution for noise reduction / anti-cavitation
