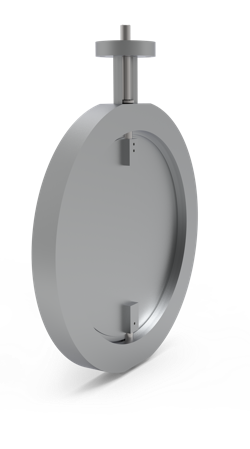

DGD
CONTROL VALVES WITH CENTRALLY
MOUNTED DISC
Throttle valves with a centrally mounted disc, suitable for applications with all types of gases. The robustly designed components enable maintenance-free operation and maximum operational reliability.
Technical Information
- DN 100 – DN 1000
- Disc with stop
- Leakage rate ≤ 0.05% Kvs 90°
- Wafer design
- Face-to-face dimension according to factory standard
- Suitable for installation between PN 6 flanges
- Operating temperature from -10°C to +200°C
DGD
DESIGN FEATURES
- Control valve with a centrally mounted throttle disc.
- The housing is a simple, lightweight ring body for clamping between PN 6 flanges.
- The throttle disc is pressure-resistant, stops against the body, and is connected to the shaft by means of dowel pins.
- The sealing surfaces are machined.
- The two-piece shaft is maintenance-free.
- The shaft is sealed by replaceable O-rings.
- Actuator adaptation according to DIN/ISO 5211 or factory standard
AREAS OF APPLICATION
- Exhaust air technology
- Air and air conditioning technology
